Sale!

EVIL ENERGY 3/4/6/8/10/12/16/20AN Male Weld on Bung Fitting Aluminum/Stainless steel

Original price was: $13.99.Current price is: $5.60.

Quantity

Material

Clear

SKU: US-7123366641800 Categories: EVIL ENERGY, Male Weld on Bung Fitting

Description

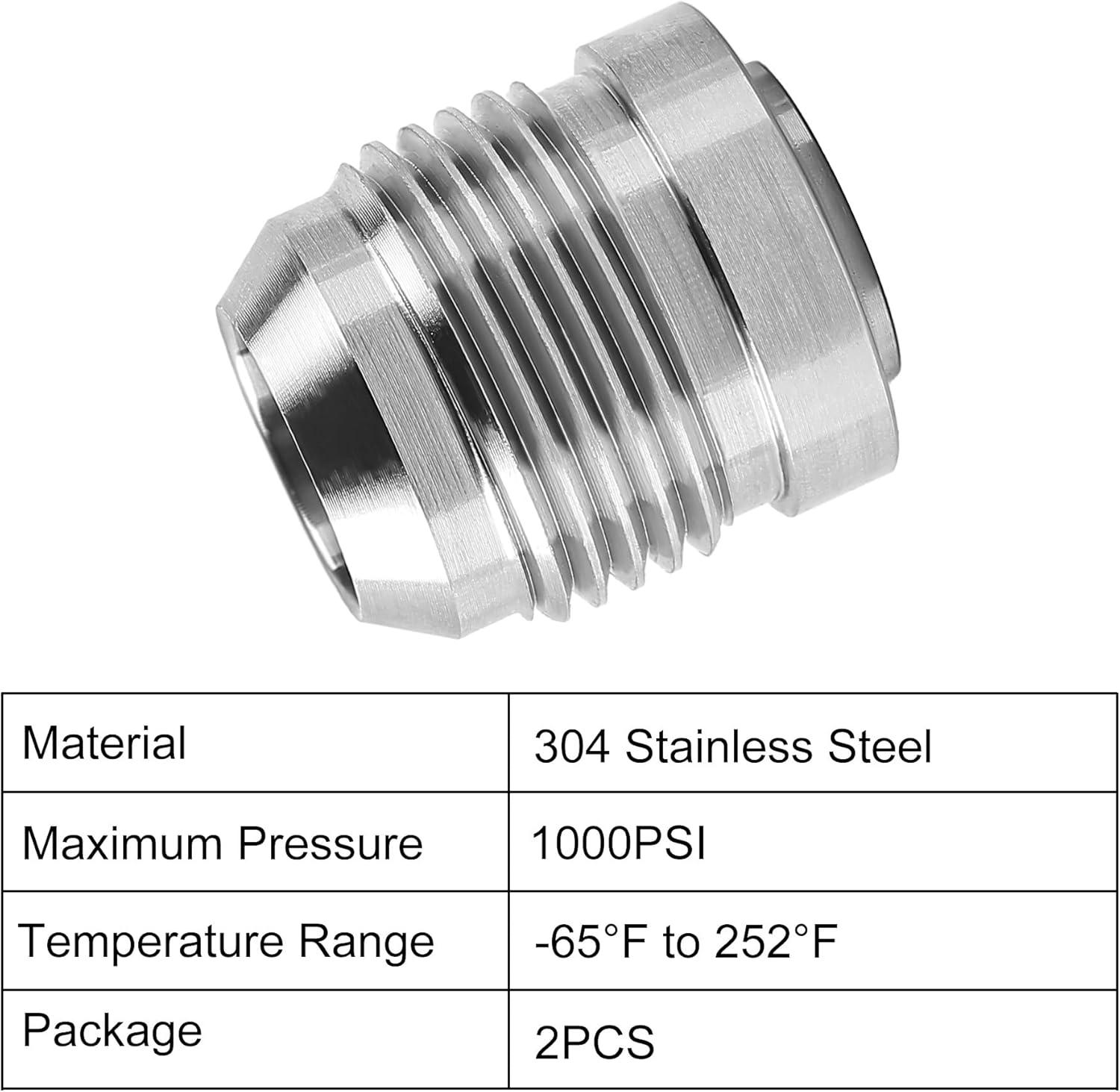

EVIL ENERGY 3/4/6/8/10/12/16/20AN Male Weld on Bung Fitting Aluminum/Stainless steel

Size: Thread size of 4an weld bung is 7/16-20 UNF,6an weld bung is 9/16-18 UNF，8an weld bung is 3/4-16 UNF,10an weld bung is 7/8-14 UNF,12an weld bung is 1 1/16-12 UNF.16an weld bung is 15/16-12 UNF.20an weld bung is 15/8-12 UNF.

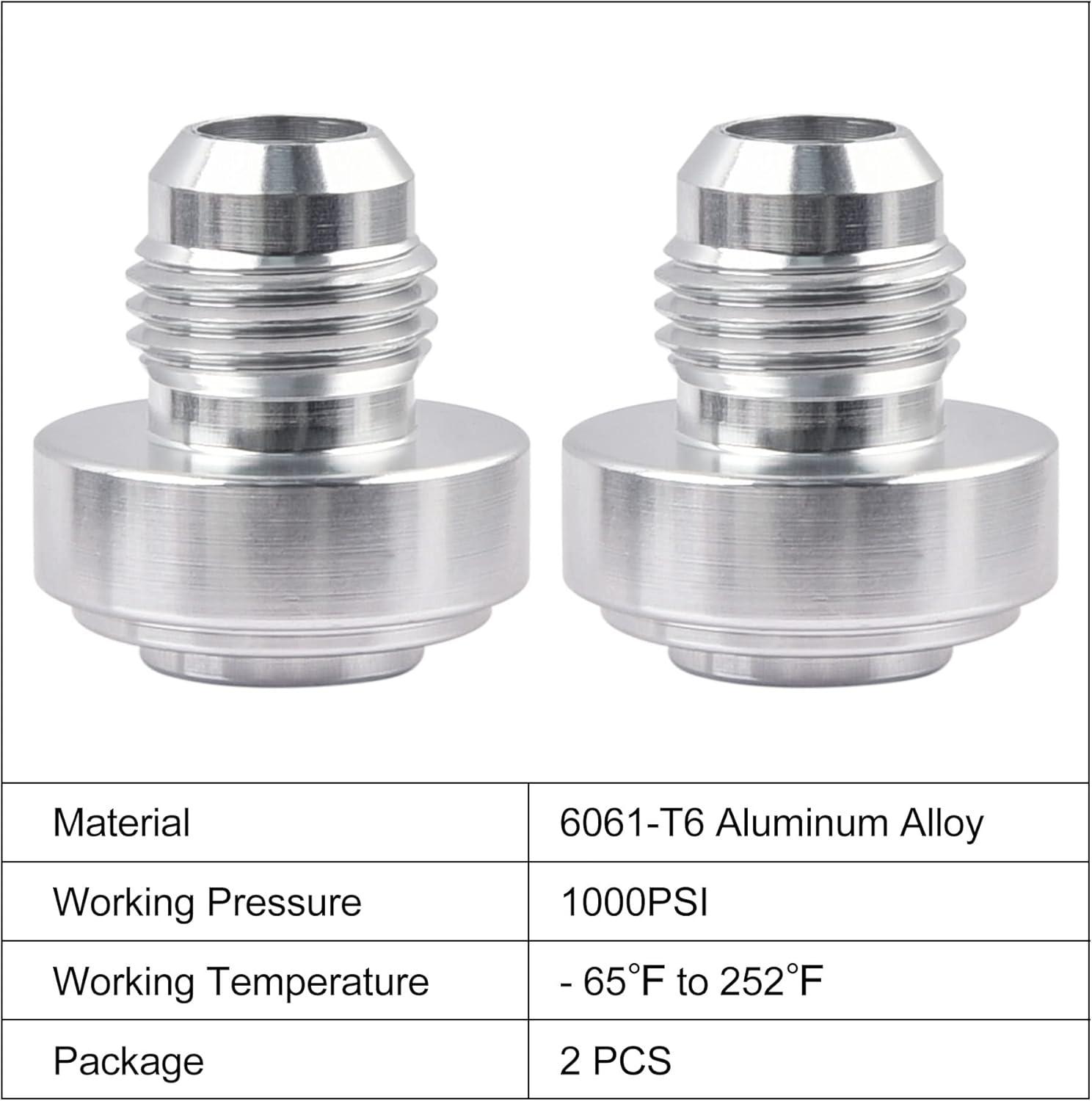

Material: Made of aluminum alloy 6061-T6.

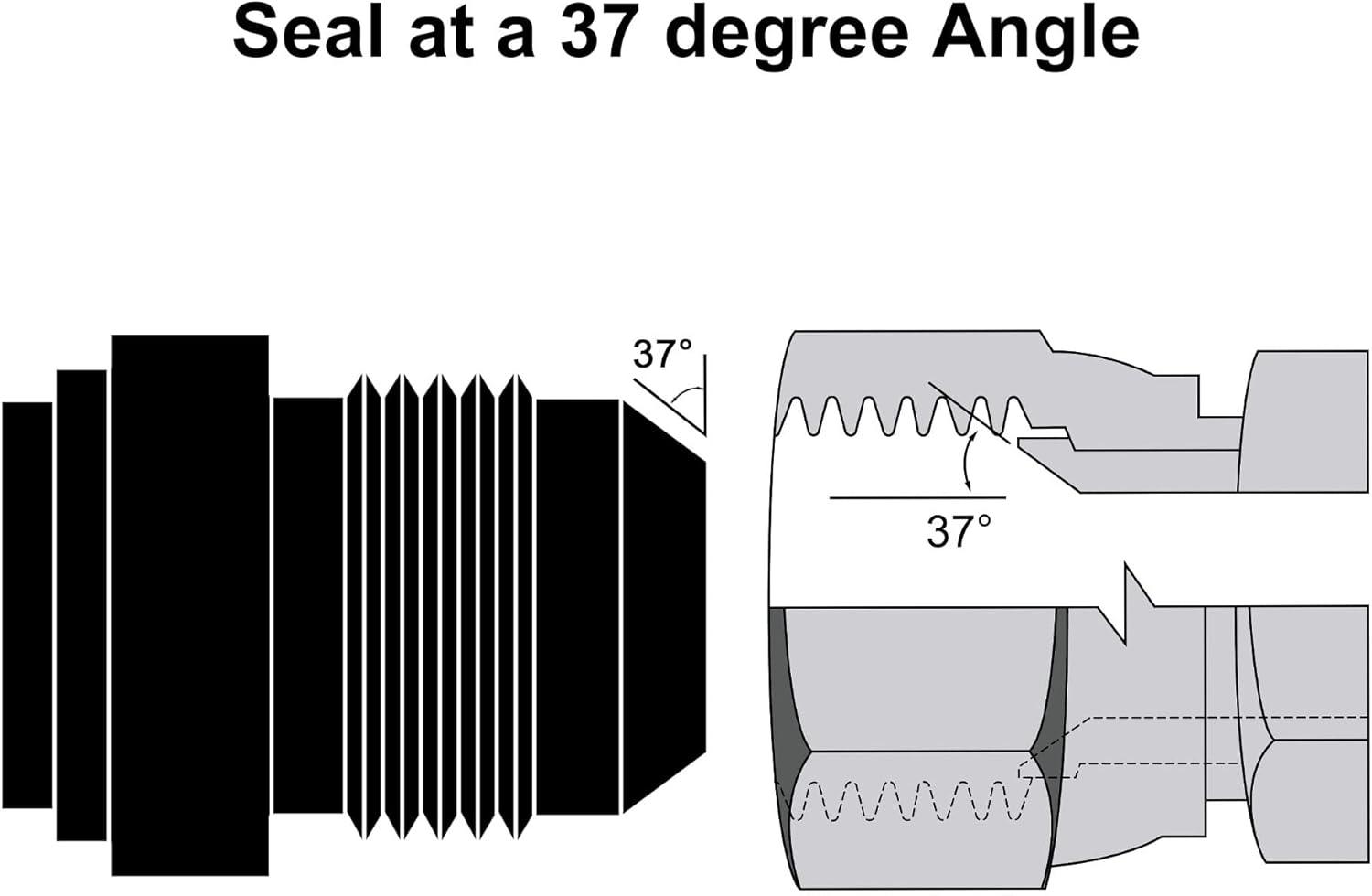

Sealing: The AN thread of the flare is sealed by a 37 degree angle.
Parameter: Max pressure: 1000PSI(68.94bar), Operating temperature: – 65℉ to 252℉.
Note: Can not be screwed too tightly when using, otherwise it will deform the 37 degree valve seat and cause leakage
