Sale!

EVIL ENERGY 4/6/8/10/12AN Female to Female 90 Degree Swivel Coupler Union Fitting Adapter Aluminum

Original price was: $11.40.Current price is: $4.56.

Style

Size

Clear

SKU: US-7123355861128 Categories: AN to AN Fittings, EVIL ENERGY

Description

EVIL ENERGY 4/6/8/10/12AN Female to Female 90 Degree Swivel Coupler Union Fitting Adapter Aluminum

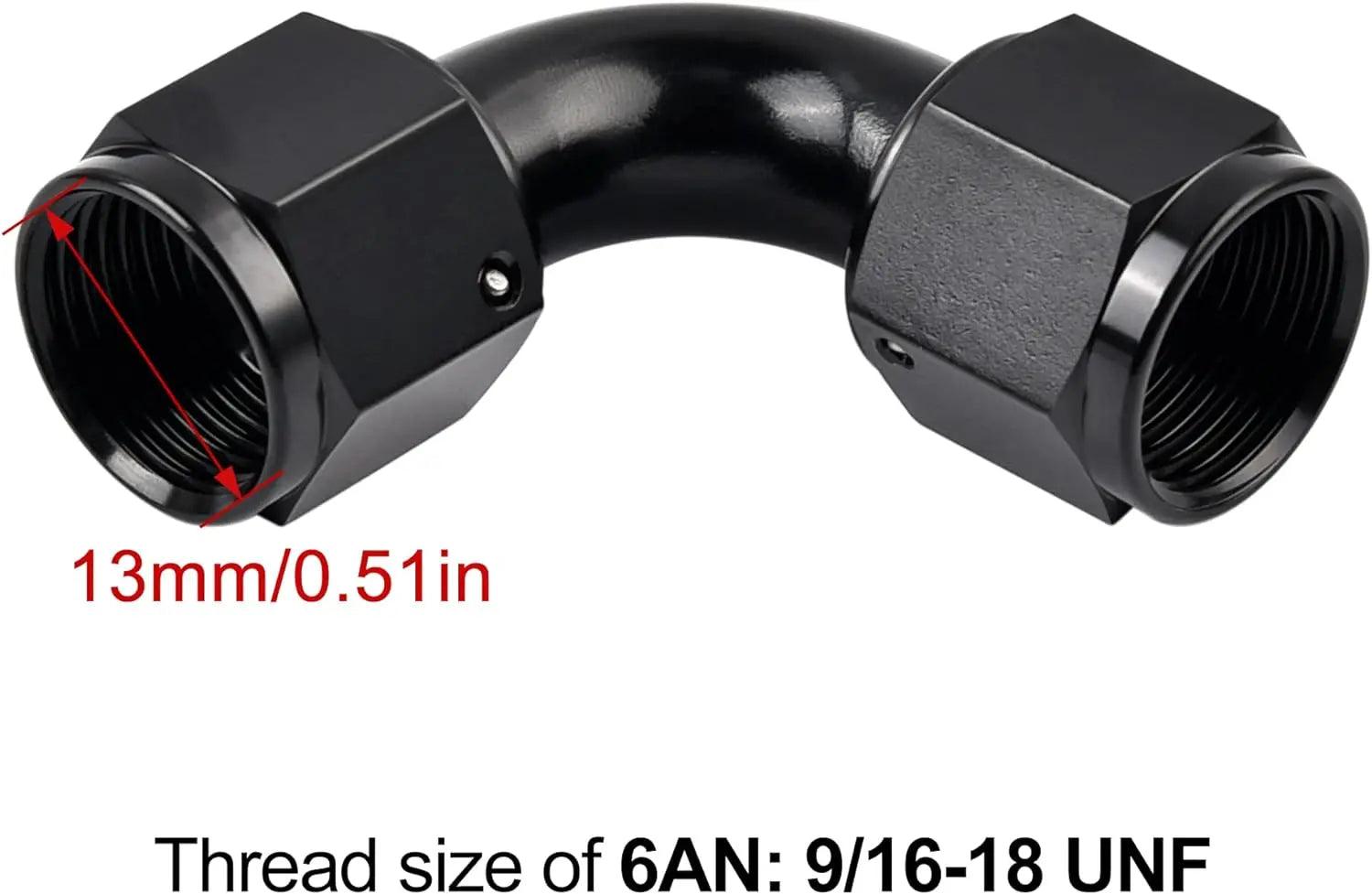

Female AN6 to Female AN6, the thread size is 9/16-18 UNF.

Female AN8 to Female AN8, the thread size is 3/4-16 UNF.

Female AN10 to Female AN10, the thread size is 7/8-14 UNF.

Female AN12 to Female AN12, the thread size is 1-1/16-12 UNF.

All are 90 point elbows.

Parameter: Max Working Pressure: 1500PSI. Working Temperature Range: -65℉ to 252℉.
Sealing: The AN side of the flare is sealed by a 37 degree angle.
Material: Made of aluminum alloy 6061-T6, anodized black surface.
Feature: Designed by 360° Swivel for easy assembly. It can be reused and recycle.
