EVIL ENERGY 6/8AN Male to SAE Quick-Disconnect Fittings Female Push-On EFI Ls Swap Fitting
Product details
Size
6AN to 3/8″,6AN to 5/16″, 8AN to 3/8″,8AN to 5/16″ .
Material
Aluminum
Brand
EVIL ENERGY
Color
Blackblue-Straight
Connector Type
Flare
Exterior
Aluminum
Thread Type
EPA
About this item

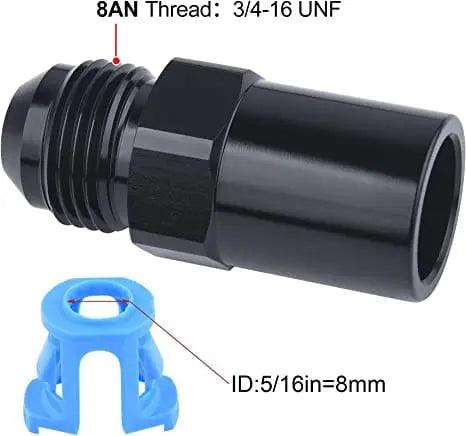

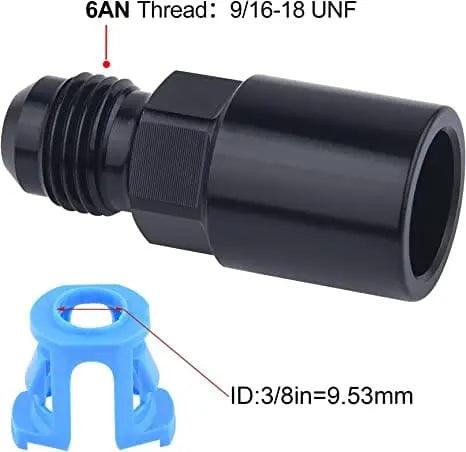

[Size] The thread size of 6an is 9/16-18UNF. The ID of spring lock is 3/8 inch and 5/16 inch. The thread size of 8an is 3/4-16 UNF. The ID of spring lock is 3/8 inch and 5/16 inch.
[Seal] The 6/8an flare efi fitting is sealed at 37 degree angle to avoid leakage.
[Parameter] Working pressure: 1500psi, Temperature range: -40°F to 176°F.
[Material] Made of aluminum alloy 6061-T6.Spring lock is made of plastic.
[Application] Widely used in engine fuel rail, ls swap, transmission cooler, return line, fuel sensor, etc.
Product Description
Additional information
size
6AN to 3/8 inch, 6AN to 5/16 inch, 8AN to 3/8 inch, 8AN to 5/16 inch
