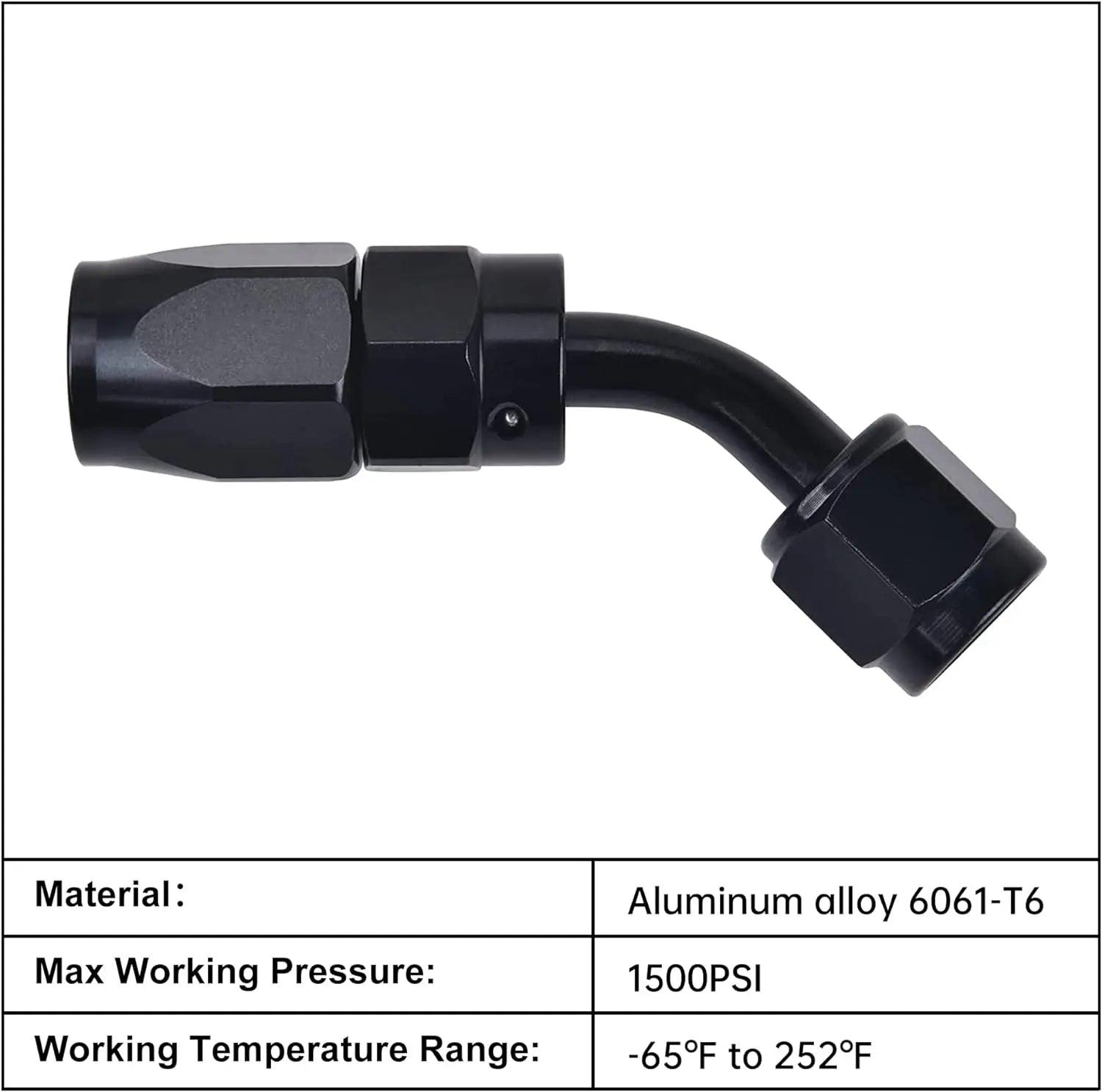

EVIL ENERGY AN Hose End Fitting 45 Degree Swivel Aluminum Black (4/6/8/10AN)
Product details
Size
4/6/8/10AN- 45 Degree
Material
Aluminum
Brand
EVIL ENERGY
Color
Black
Connector Type
Weld
Exterior Finish
Aluminum
Thread Type
BIT
About this item
[Size] The AN side is sealed by a 37 degree angle. The thread size of 4AN is 7/16-20UNF. The thread size of 6AN is 9/16-18 UNF. The thread size of 8AN is 3/4-16UNF. The thread size of 10AN is 7/8-14 UNF.
[Application] The swivel fitting is only work with stainless braided and nylon braided hose .
[Material] Made of aluminum alloy 6061-T6.
[Parameter] Max Working Pressure: 1500PSI. Working Temperature Range: -65℉ to 252℉ (-53℃ to 122℃).
[Feature] 360° Swivel design for easy assembly. It can be reused and recycle.
