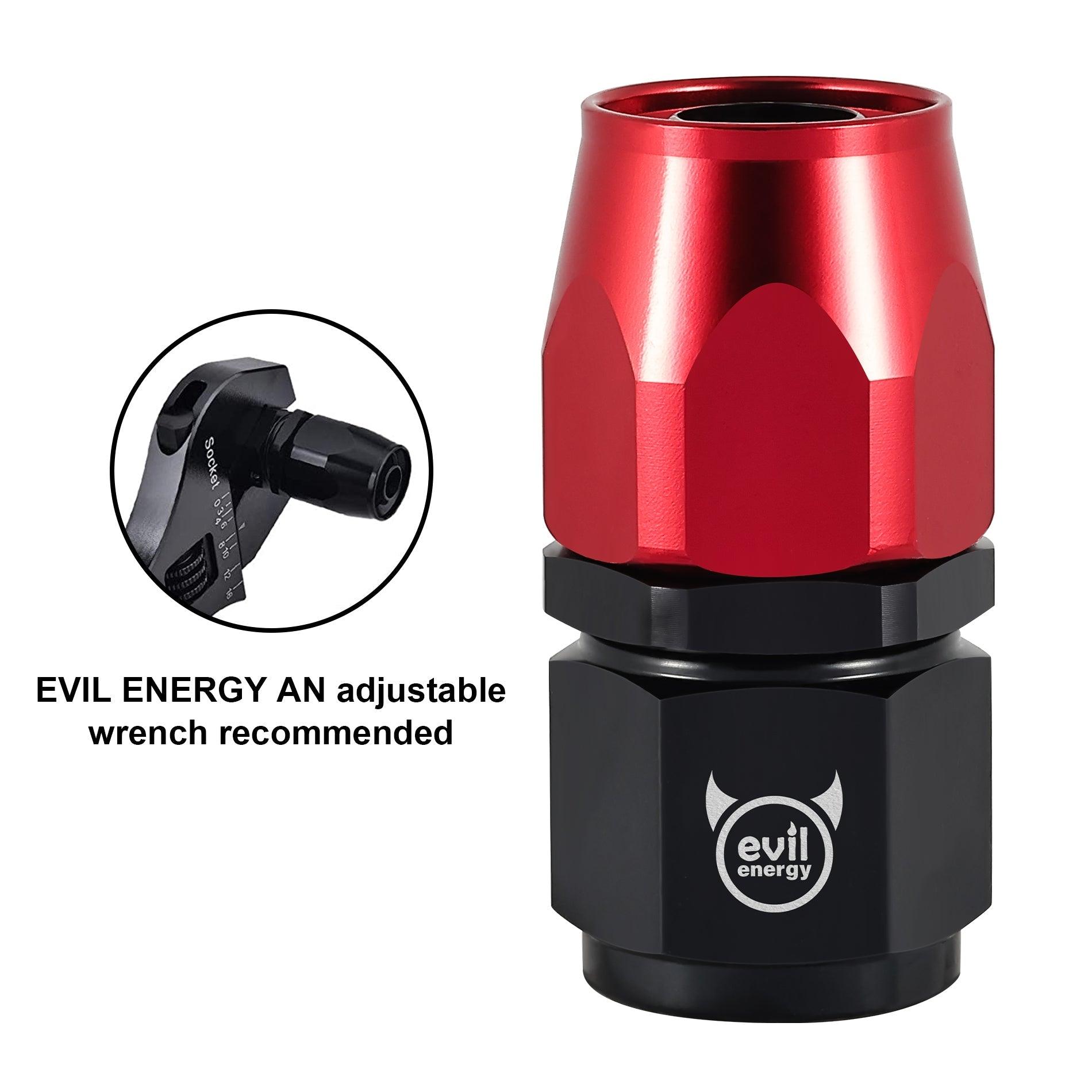

EVIL ENERGY AN Hose End Fitting Red&Black Swivel Aluminum (4/6/8/10/12AN)
Product details
Size
4/6/8/10/12AN- Straight
4/6/8/10AN- 45°
4/6/8/10/12AN- 90°
6AN- 180°
Material
Aluminum
Brand
EVIL ENERGY
Color
Red&Black
Connector Type
Weld
Exterior
Aluminum
About this item
[Size] The AN side is sealed by a 37 degree angle.
The thread size of 4AN is 7/16-20 UNF The thread size of 6AN is 9/16-18 UNF The thread size of 8AN is 3/4-16UNF The thread size of 10AN is 7/8-14 UNF. The thread size of 12AN is 1 1/16-12 UNF.

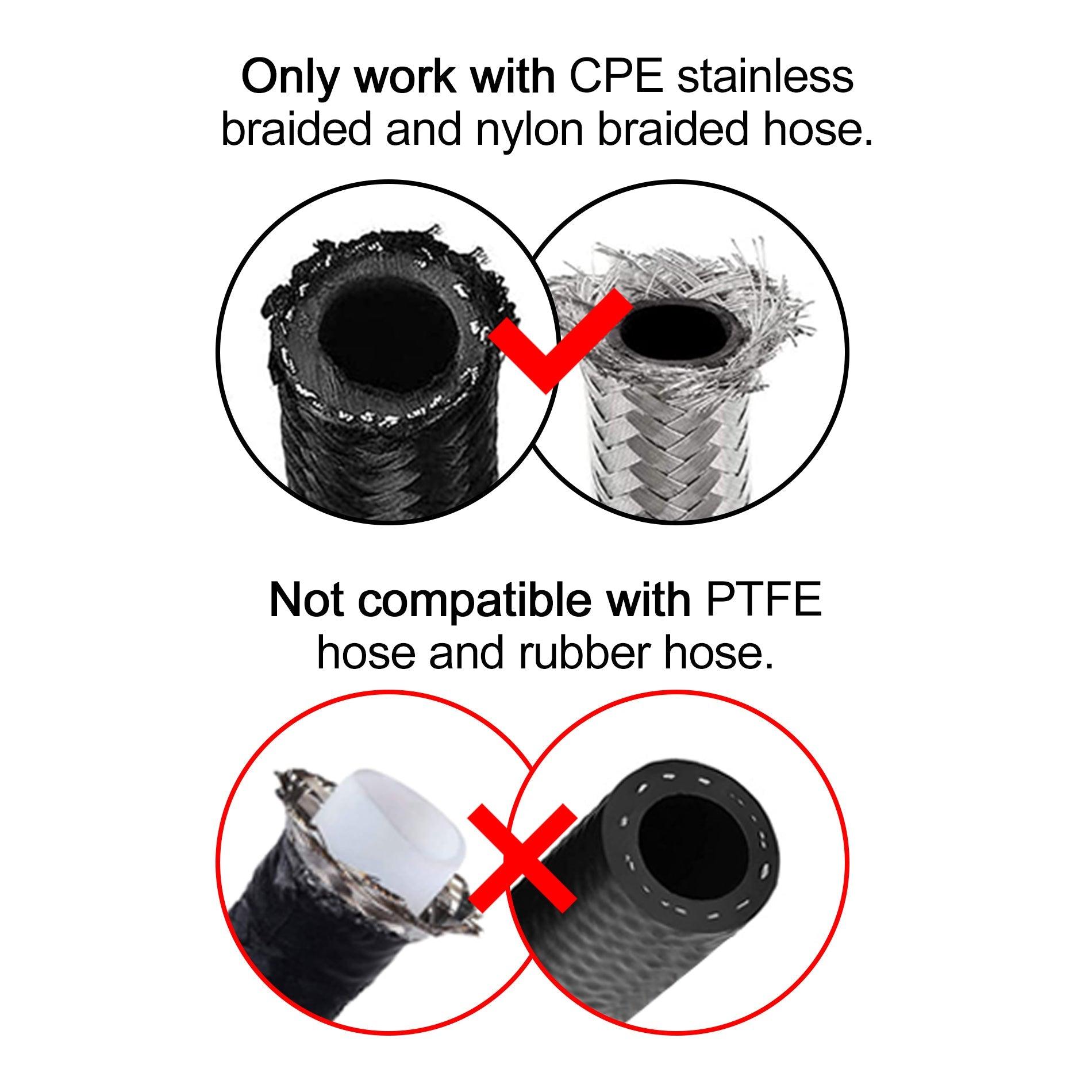

[Application] The swivel fitting is only work with stainless braided and nylon braided hose .
[Material] Made of aluminum alloy 6061-T6.
[Parameter] Max Working Pressure: 1500PSI. Working Temperature Range: -40℉ to 248℉ (-40℃ to 120℃).
[Feature] 360° Swivel design for easy assembly. It can be reused and recycle.
Note: 6/8AN straight fitting Part of the fittings are not printed logo.
