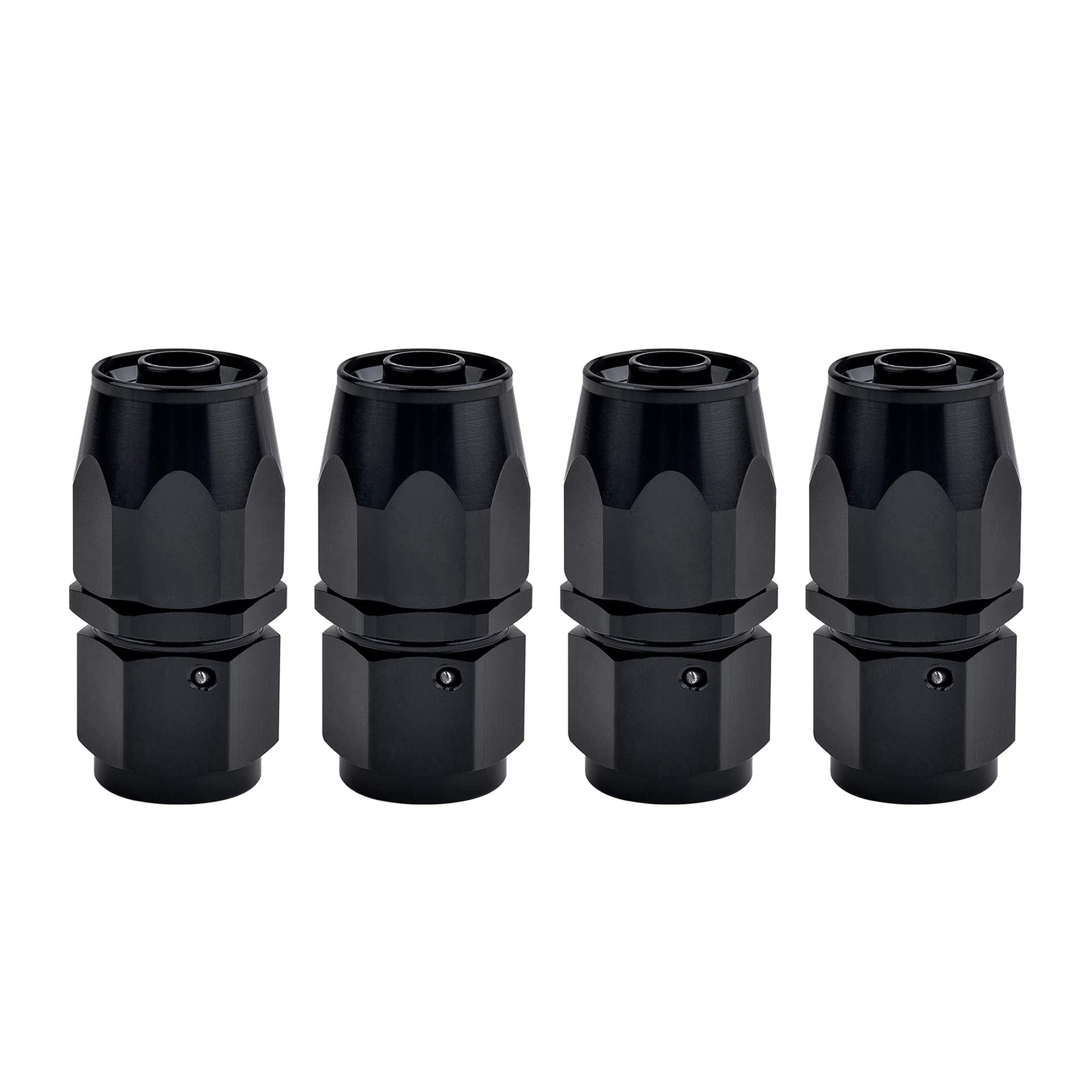

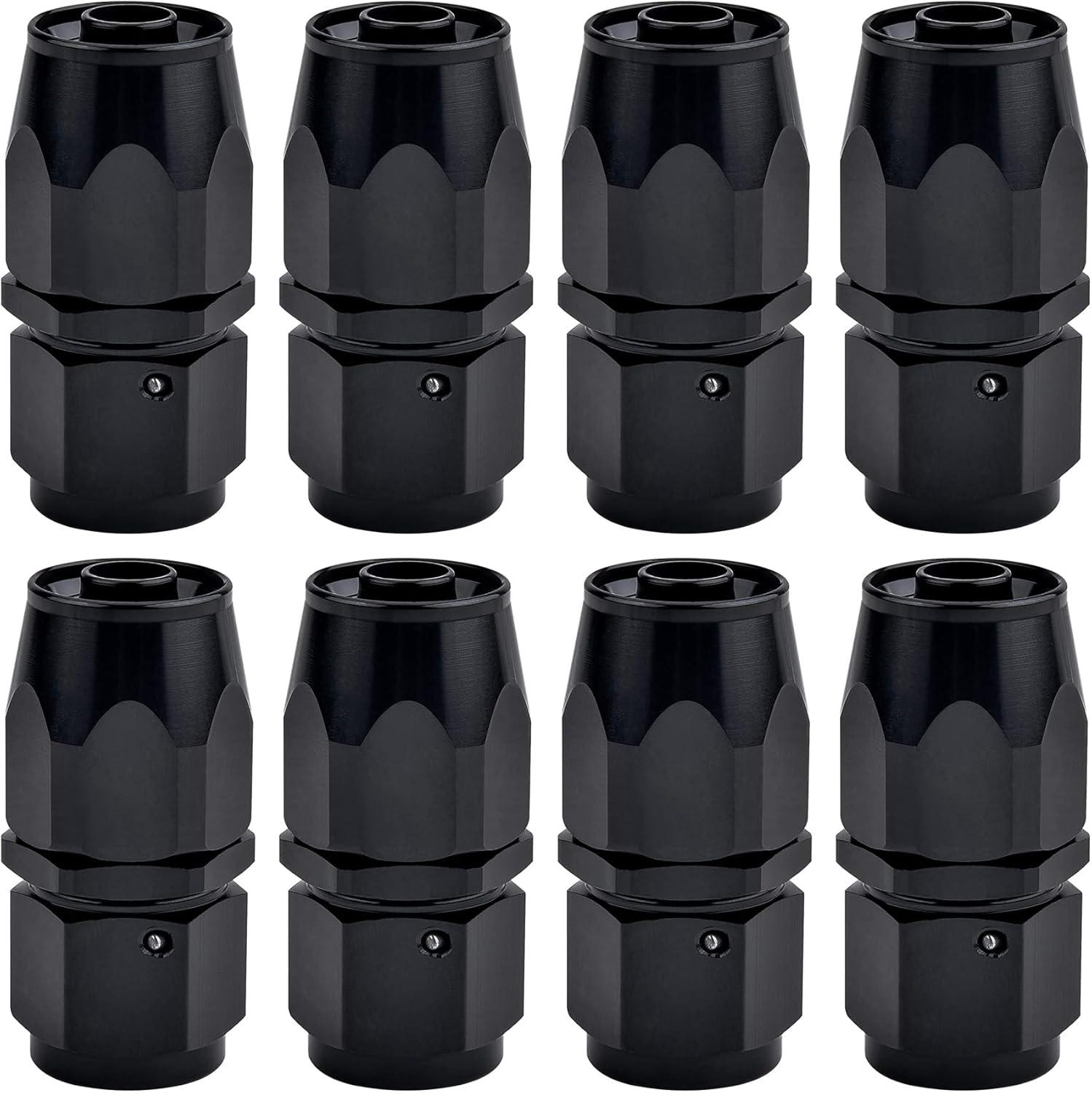

EVIL ENERGY AN Hose End Fitting Straight Swivel Aluminum Black (4/6/8/10/12AN)
Product details
Size
4/6/8/10/12AN-Straight-Black
Material
Aluminum
Brand
EVIL ENERGY
Color
Black
Connector Type
Weld
Exterior
Aluminum
About this item
[Size] The AN side is sealed by a 37 degree angle.
The thread size of 4AN is 7/16-20 UNF The thread size of 6AN is 9/16-18 UNF The thread size of 8AN is 3/4-16UNF The thread size of 10AN is 7/8-14 UNF. The thread size of 12AN is 1 1/16-12 UNF.
[Application] The swivel fitting is only work with stainless braided and nylon braided hose .
[Material] Made of aluminum alloy 6061-T6.
[Parameter] Max Working Pressure: 1500PSI. Working Temperature Range: -40℉ to 248℉ (-40℃ to 120℃).
[Feature] 360° Swivel design for easy assembly. It can be reused and recycle.
