EVIL ENERGY AN Male Flare to Male Metric Fitting Adapter Aluminium Alloy Hot on Sale

Original price was: $9.99.Current price is: $4.00.

Size

Thread Size

Clear

SKU: US-7124109525128 Categories: AN to M Fittings, EVIL ENERGY

Description

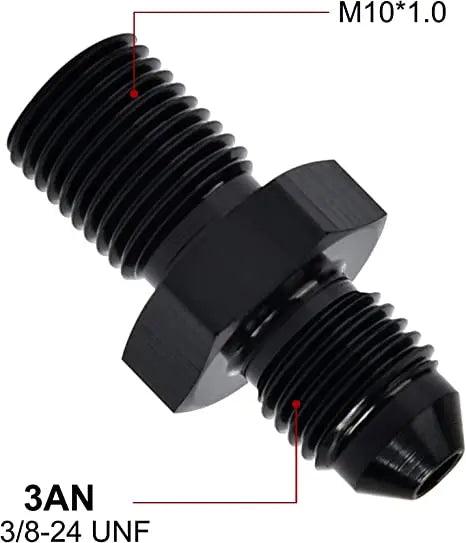

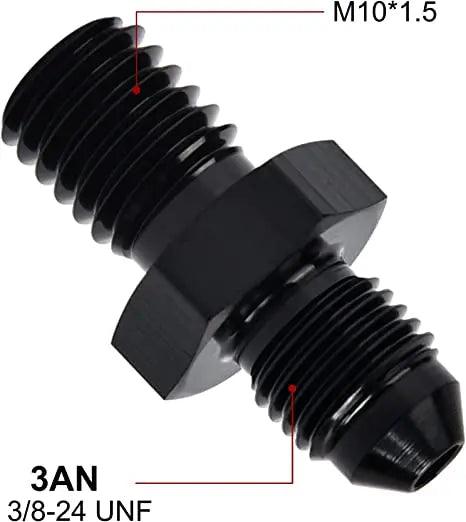

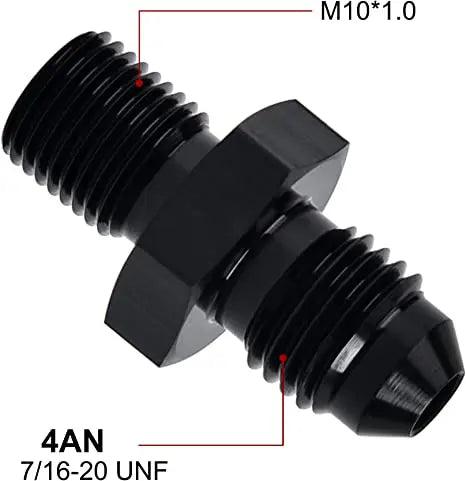

EVIL ENERGY AN Male Flare to Male Metric Fitting Adapter Aluminium Alloy

Size: The thread size of 6AN is 9/16-18 UNF ,3AN is 3/8-24 UNF,4AN is 7/16-20 UNF,8AN is 3/4-16 UNF,10AN is 7/8-14 UNF.
Sealing: The AN side of the flare is sealed by a 37 degree angle and the metric thread side is sealed by an o-ring.
Parameter: Working pressure: 1500PSI; Working temperature: -4°F-212°F (-20°-100°).
Material: Made of aluminum alloy 6061-T6 body and NBR rubber o-ring.
Application: Widely used in transmission oil coolers, fuel filters, fuel lines,etc.

Size	3AN, 4AN, 6AN, 8AN, 10AN, 12AN
Thread Size	M8x1.0, M8x1.25, M10x1.0, M10x1.5, M12x1.0, M12x1.25, M10x1.25, M12x1.5, M14x1.25, M14x1.5, M16x1.5, M18x1.5, M20x1.5, M22x1.5, M24x1.5
