About this item

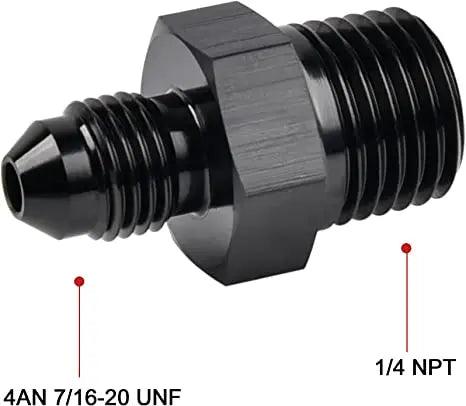

• Size: The thread size of 3AN is 3/8-24 UNF,4AN is 7/16-20 UNF,6AN is 9/16-18 UNF,8AN is 3/4-16 UNF,10AN is 7/8-14 UNF,12AN is 1-1/16-12 UNF.
• Material: Made of aluminum alloy 6061-T6, anodized black surface.
• Sealing: The AN side of the flare is sealed by a 37 degree angle and the NPT thread side is sealed by a 60 degree tapered thread.
• Application: Widely used in fuel systems, cooling systems, power steering systems, etc.
• Notice: To ensure no leakage at the NPT end, sealant or PTFE tape is strongly recommended.
