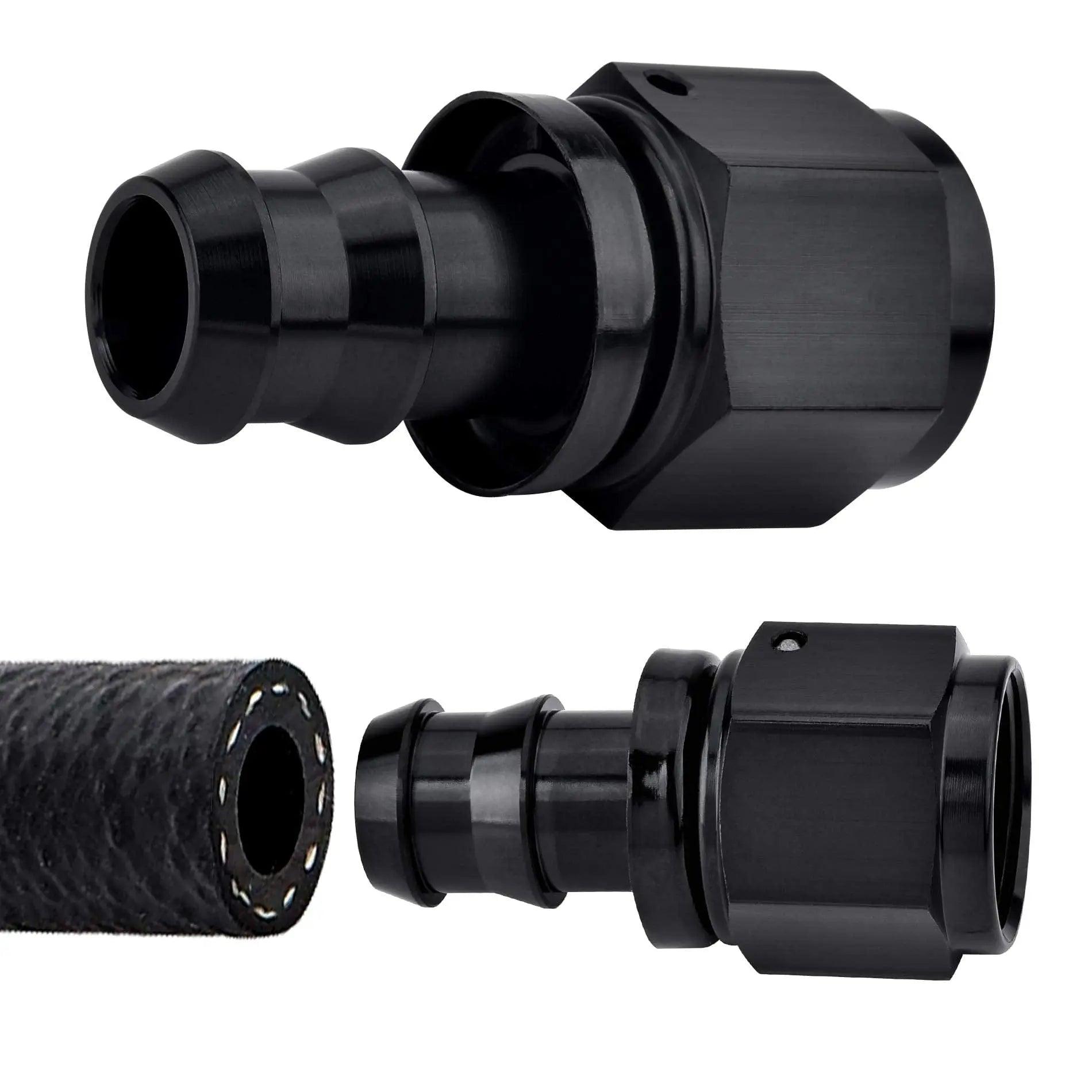

EVIL ENERGY AN Straight Push Lock Hose Fitting End Black (4/6/8/10/12AN)
Product details
Size
4/6/8/10/12AN Straight
Material
Aluminum
Brand
EVIL ENERGY
Color
Black
Connector Type
Weld
Exterior
Aluminum
About this item
[Size] 4AN to 1/4 inch barb, and thread size of 4an is 7/16-20 UNF. 6AN to 3/8 inch barb, and thread size of 6an is 9/16-18UNF. 8AN to 1/2 inch barb, and thread size of 8an is 3/4-16UNF. 10AN to 5/8 inch barb, and thread size of 10an is 7/8-14UNF. 12AN to 3/4 inch barb, and thread size of 12an is 1-1/16-12 UNF.

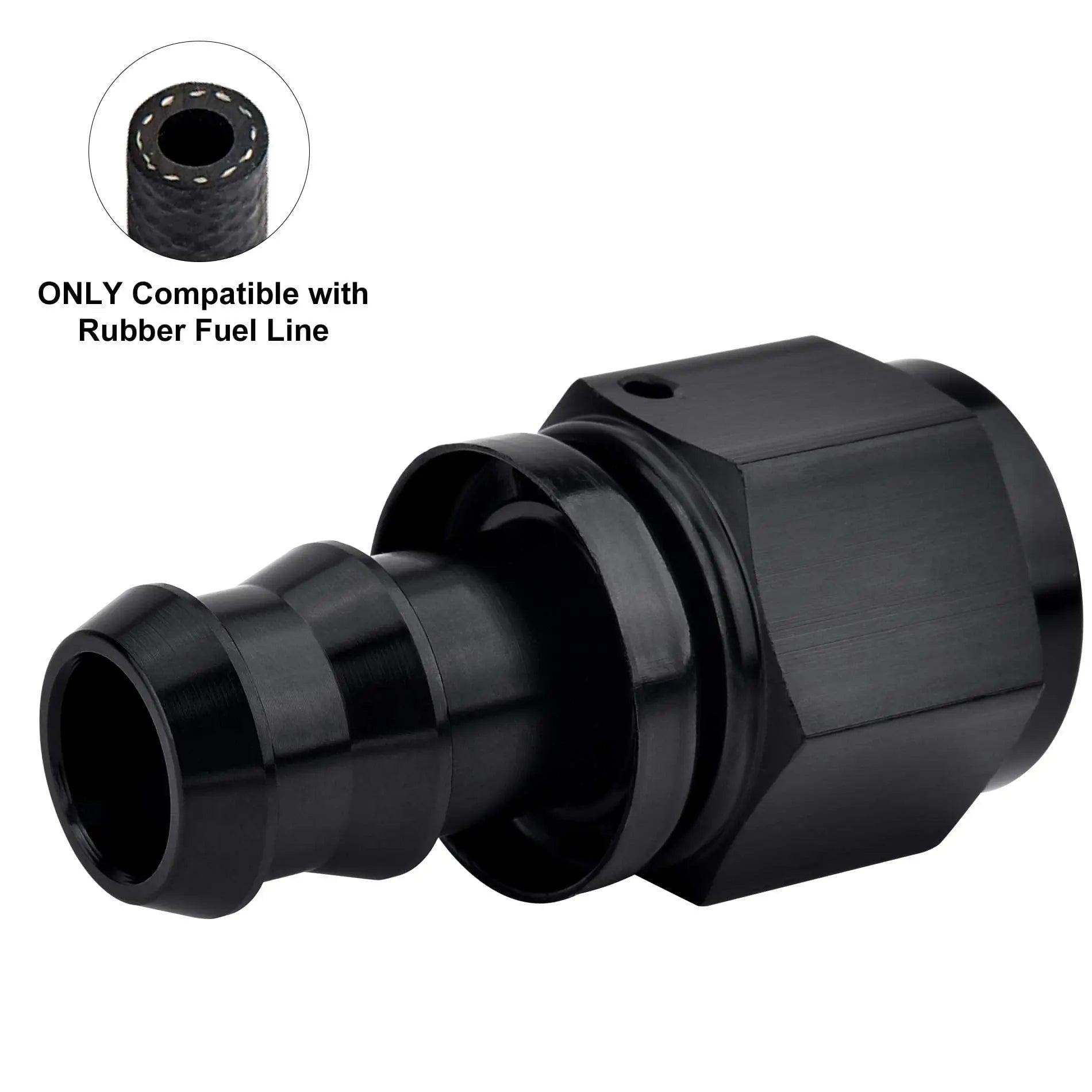

[Application] The barb fitting only work with rubber fuel line.

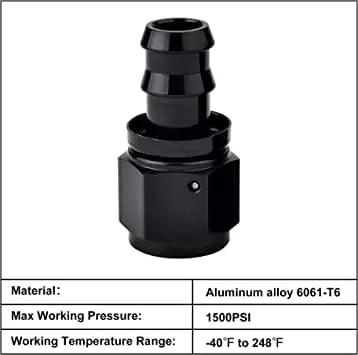

[Parameter] Max working pressure: 1500PSI; Temperature range: -40℉ to 248℉.
[Material] Made of aluminum alloy 6061-T6.
[Installation] Easy to install, it is recommended to use clamps to enhance sealing.
