Sale!

EVIL ENERGY Fuel Injection In-Line Fuel Delivery Kit External Frame Mounted Pump

Original price was: $319.99.Current price is: $64.00.

SKU: US-8203509465224 Categories: ,

Description

EVIL ENERGY Fuel Injection In-Line Fuel Delivery Kit External Frame Mounted Pump

In-Line Fuel Delivery Kit

Upgrade your ride with EVIL ENERGY’s In-Line Fuel Delivery Kit. This kit features a 300 LPH fuel pump and includes all essentials for connecting your fuel tank to EFI throttle bodies. Enjoy the benefits of our 100/300-micron filters and durable CPE/PTFE hoses for a seamless, high-performance fuel system. Perfect for a hassle-free installation.

Difference between CPE & PTFE Fuel Hose

PTFE CPE
Temperature Range -76℉ to 446℉ -40℉ to 257℉.
Max Working Pressure 1500 psi 750psi
Bursting Pressure 145000psi 2250psi
Hose OD 0.43inch 0.56inch
Hose ID 0.31inch 0.31inch
Minimum Bend Radius 3.5inch(88.9mm) 2.5inch(63.5mm)
Applicable Medium 5/16 marine fuel line is suit for all automotive fuels, lubricants, and coolants. The braided fuel hose can be compatible with transmission fluid, oil, race gas, vacuum, hydraulic fluid, diesel and fuel.

PRODUCT DETAILS

Brand EVIL ENERGY
Application Fit for 12V DC EFI system only.
Hose Size 6AN 20FT
Hose Material PTFE or CPE
Test Flow

200 LPH (75PSI & 12V);

255 LPH (43 PSI&12V) ;

300 LPH (43 PSI&13.5V)
Kit Includes:

300 LPH External Fuel Pump*1

6AN 20FT Fuel hose*2

100Micron Pre-Filter*1

30Micron Post Filter*1

Mounting bracket*3

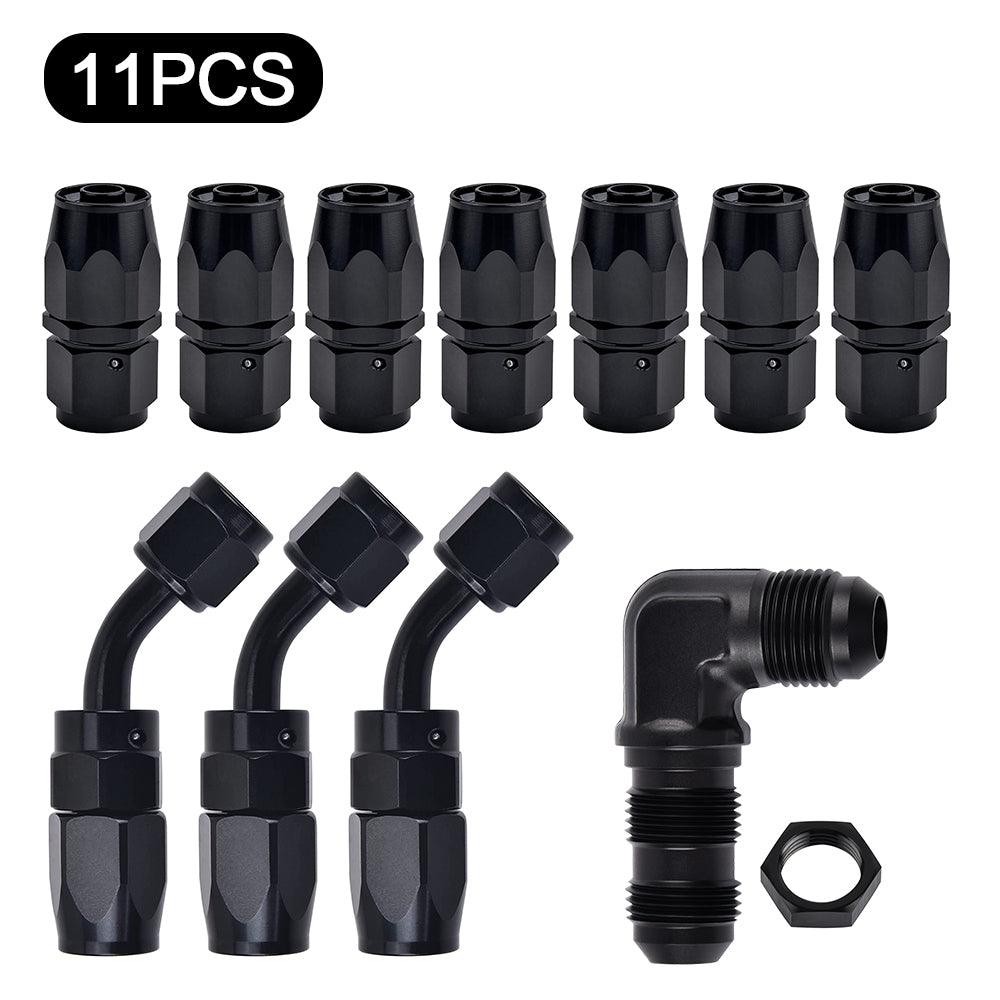

PTFE or CPE AN6 Swivel fitting 0° *7

PTFE or CPE AN6 Swivel fitting 45° *3

AN6 90 °bulkhead connector *1

(Carburetor & throttle body not included.)

FEATURES

  • [One-stop Solution] EVIL ENERGY inline fuel delivery kits, each kit comes with everything you need to connect the fuel tank to the EFI throttle body.300LPH External Fuel Pump is suitable for engines with power up to 650.
  • [Full Medium] Compatible with diesel/biodiesel/oil/gasoline/E85 gasoline/oil/grease/methanol/water/air/transmission fluids and other media. (CPE is not recommended to be compatible with E85 gasoline& methanol.)

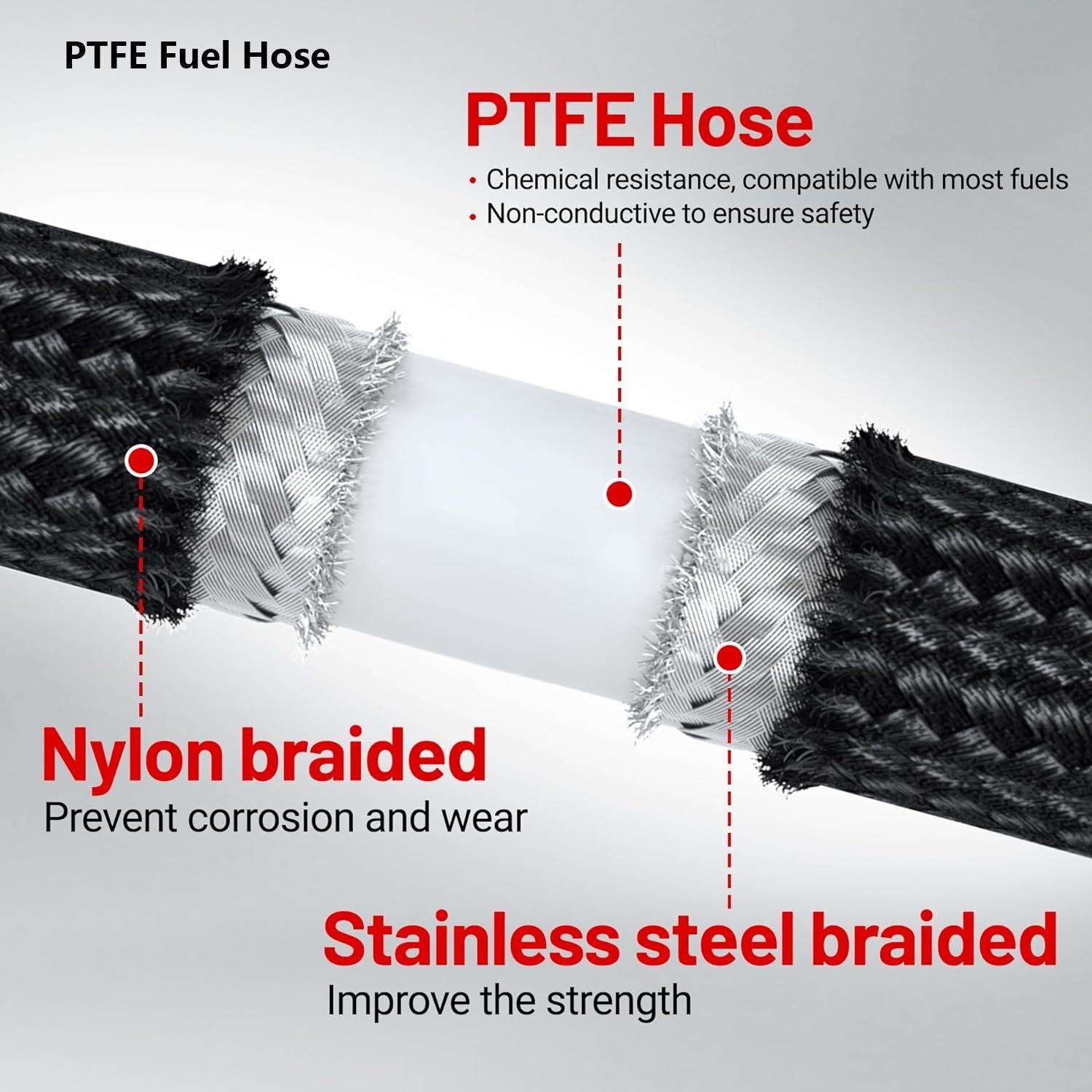

  • [Excellent Fuel Hose] EVIL ENERGY CPE&PTFE fuel hose consists of 3 layers of material. The core of the tube is wrapped with nylon braid and stainless steel mesh wire to further improve the performance of high temperature, high pressure and corrosion resistance.
  • [Warranty] EVIL ENERGY provides 6 months warranty for this kit. For any questions or additional information, feel free to contact us at [email protected].



Why Choose Evil Energy?

At Evil Energy, we are committed to providing reliable and efficient fuel system solutions for global car owners and enthusiasts.

Our products, including our fuel filters, fuel pressure regulator、braided fuel lines and fittings, are the result of extensive research and rigorous testing to meet the highest standards of quality and performance.

  • Fast Shipping: Orders are processed within 1-2 business days for quick delivery.
  • Easy Returns: Enjoy a hassle-free 90-day return policy with free return shipping (Requires no use or installation, packaging intact). 90-180 days will be charged a 15% operating fee.
  • Warranty: EVIL ENERGY provides 1-year warranty on this kit. For questions, reach out to us via email.

For additional information, please contact us at [email protected].

Additional information

Hose Material

PTFE, CPE
