EVIL ENERGY NPT Male to Barb Fitting Adapter 90 Degree Aluminum Black
Product details
Size
1/2 Barb to 3/8 NPT,1/4 Barb to 1/8 NPT 1/3 Barb to 1/4 NPT,5/4 Barb to 1/2 NPT
Material
Aluminum
Brand
EVIL ENERGY
Angle
90 degree
Connector Type
Barb
Exterior
Aluminum
Thread Type
NPT
About this item

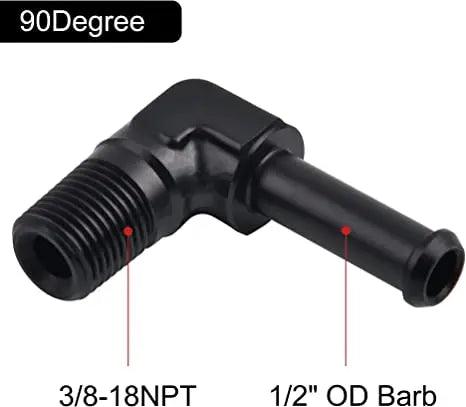

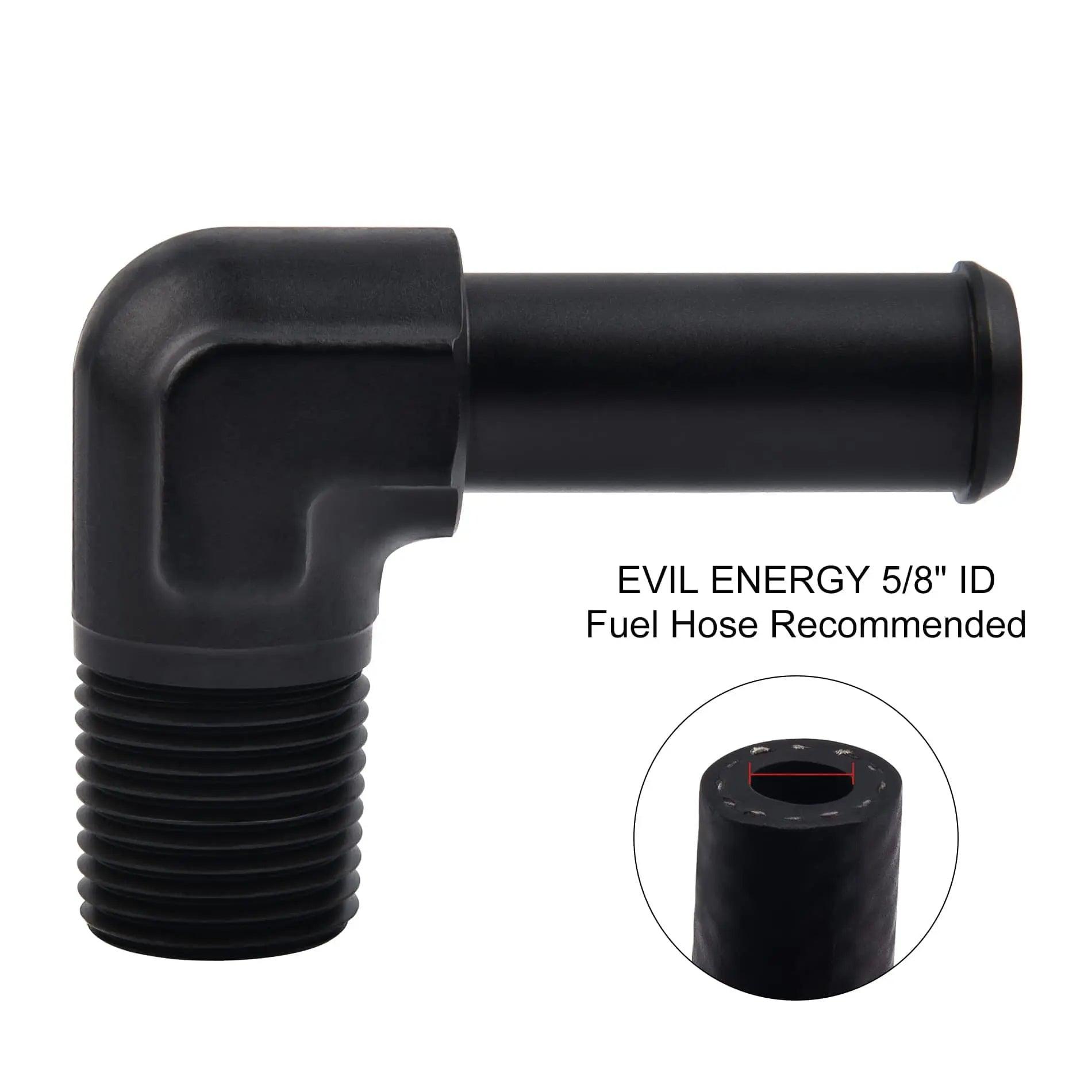

[Size] Thread size of NPT: 3/8-18 NPT; OD of barb: 1/2 inch. Thread size of NPT: 1/8-27 NPT; OD of barb: 1/4 inch. Thread size of NPT: 1/4-18 NPT; OD of barb: 3/8 inch. Thread size of NPT: 1/2-14 NPT; OD of barb: 5/8 inch.
[Material] Made of aluminum alloy 6061-T1, anodized black surface.
[Parameter] Working temperature range:-65°F to 252°F (-53°C to 122°C)
[Seal] The NPT side is sealed with tapered threads,please use sealant or PTFE tape to ensure a better seal.
[Installation] When installing barb fittings, it is recommended to use clamps to ensure sealing.
Product Description
Additional information
Size
1/2 Barb to 3/8 NPT, 1/4 Barb to 1/8 NPT, 3/8 Barb to 1/4 NPT, 5/8 Barb to 1/2 NPT
