Description

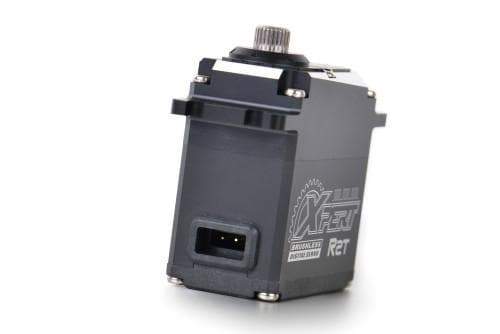

Xpert R2T Standard Size Aluminum Tail Servo

Features:

• Quick release cable that allows easy and quick installation for all helicopters.

• Brushless motor design provides extremely high speed, top efficiency, and low power consumption.

• 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.

• Light weight design

• Aluminum upper and center case.

• Plastic bottom case.

• Strong Metal Gear

• Glitch-free

• Sophisticated error correction

• High-Speed, High-precision 12-bit AD converter and CPU calculation

• Fail safe

• Over current protection

• Over temperature protection

• Start sonorant

• 760us narrow band

• Operating frequency up to 800Hz

Product Note: Not compatible (will not function) with Bavarian Demon 3SX & Bavarian Demon 3X. Fully functional with latest “Axom” Bavarian Demon products.



R2T Spec:

Speed (sec/ 60°)	@6.0V: .056 sec/60° @7.4V: .045 sec/60° @8.4V: .040 sec/60°
Torque (oz/in)	@6.0V: 166.56 oz-in @7.4V: 205.43 oz-in @8.4V: 233.18 oz-in
Torque (kg/cm)	@6.0V: 12.00 kg-cm @7.4V: 14.80 kg-cm @8.4V: 16.80 kg-cm
